MPVWP-L46U-PPV3 Mustang Professional Portrait Video Wall Mount

Description

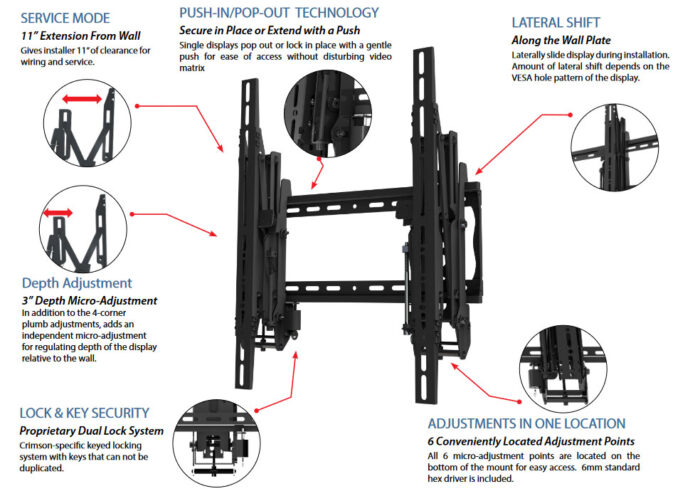

The Mustang Pro MPVWP-L46U-PPV3 Portrait Video Wall mount with Push in, Pop out Technology and 6 points of adjustment for easy alignment. The third generation of our best in class video wall mount system builds on proven previous models to deliver even more points of adjustment as well as increased adjustment range, with professional installers in mind. In addition to vertical, horizontal, and plumb adjustments, the MPVWP-L46U-PPV3 allows for nearly 3” of depth micro-adjustment for ultimate ease in video wall alignment especially in instances where walls are uneven.

  • Full featured video wall solution and pull out mount
  • Up to 3” of depth adjustment to address uneven walls
  • 11.00” pull out extension from wall for easy wiring
  • Push in-Pop out™ Technology to access middle displays of matrix
  • Lateral shift and Plumb adjustment
  • Vertical adjustment and leveling
  • Integrated dual keyed lock system
Call us Now at 866-395-0370 for pricing and availability.

MPVWP-L46U-PPV3 Mustang Professional Portrait Video Wall Mount. Max VESA: 400×600, Max Weight: 150lbs

SKU: MPVWP-L46U-PPV3 Categories: , ,

Specs

Recommended Display Size*: 37” – 75”
Orientation: Landscape
Weight capacity: 150 lb
Max mounting pattern: 402x783mm
VESA mounting patterns: 200x200mm through 400x600mm
Post-installation leveling: +- 0.5” (1” total)
Plumb Micro-Adjustment: +- 0.5” (1” total)
Depth Micro-Adjustment: 2.95” total depth
Depth from wall: 3.85” min (98mm) to 6.80″ (173mm) max
Extension: 11” extension from wall during service
Security: Proprietary keyed alike lock and key system
Construction: High-grade cold rolled steel
Product finish: Scratch resistant epoxy powder coat
Color: Black
