Everyday solutions for everyday needs
MPKIL-42-ELO
Mustang Professional MPKIL Series

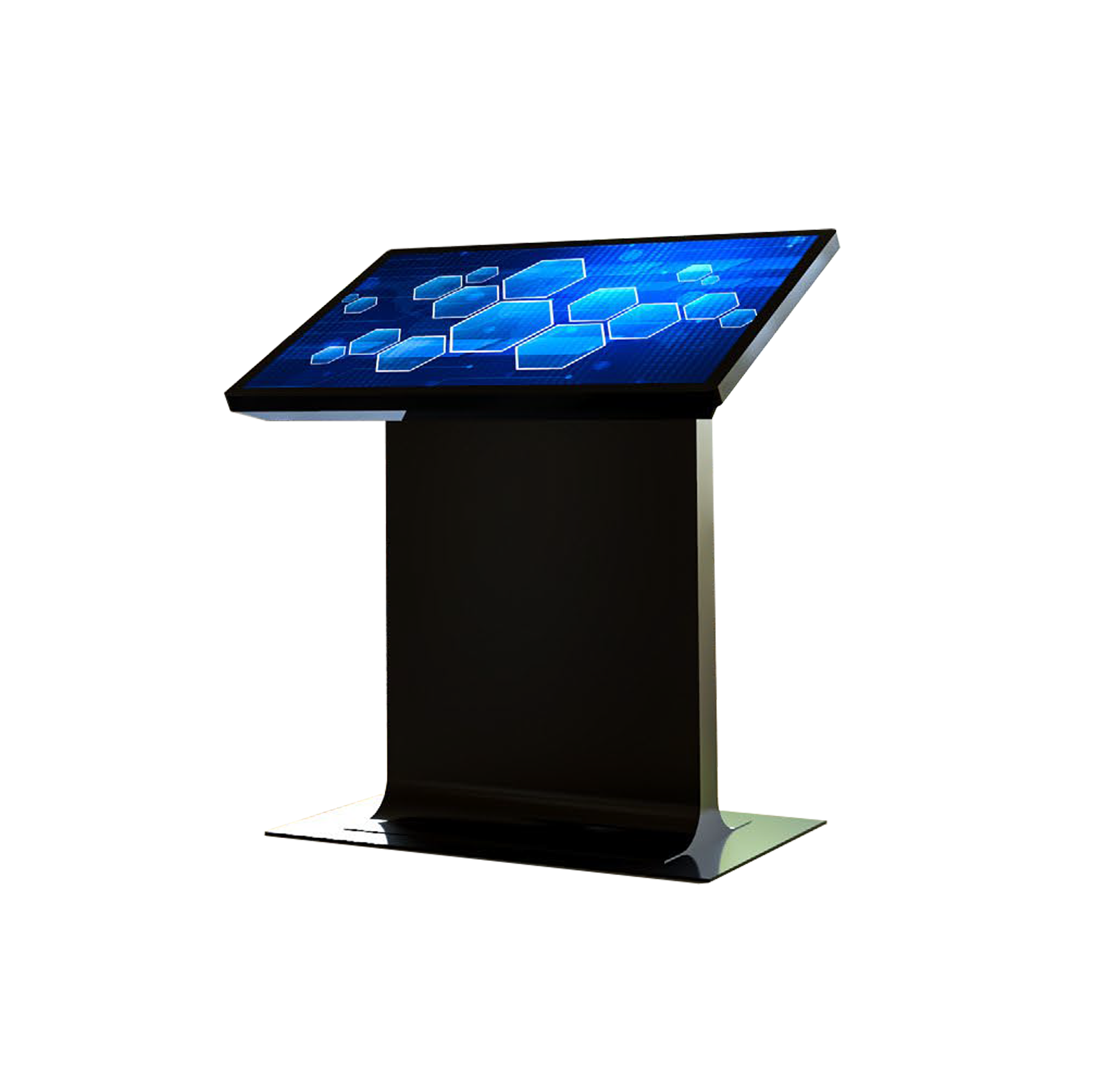

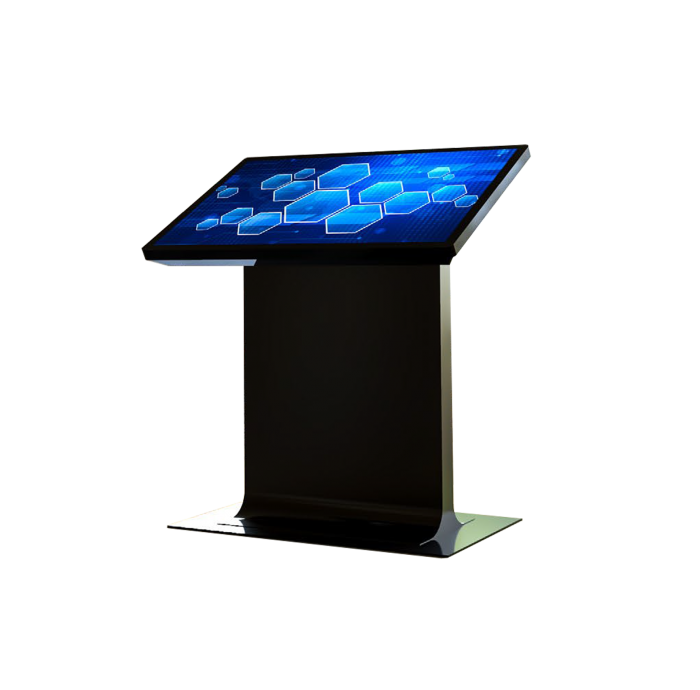

MPKIL-42-ELO Mustang Professional – Kiosk – Indoor Landscape Kiosk with 42″ ELO Touch Display

Description

The Mustang MPKIL-42-ELO indoor landscape kiosk is designed to support the ELO 4202L touch display. This kiosk features a sleek minimalistic modern look with no bulky top cabinet to support the ELO display. The kiosk base has a radius bottom which provides a smooth transition to the base support.

This kiosk is part of Mustang’s family of indoor landscape kiosks and is perfect for content and CMS partners who want to buy and then re-sell to the end users.

The kiosk is constructed using 14 GA. high impact steel and built to take public traffic and bumps and bruises. It is perfect for malls, college campuses, retail locations and a host of other applications. This kiosk can be painted any color you desire and can also include printed decals and kiosk wraps.

Call us Now at 866-395-0370 for pricing and availability.

Mustang Professional MPKIL-42-ELO – Kiosk – Indoor Landscape Kiosk with 42″ ELO Touch Display

SKU: MPKIL-42-ELO Categories: ,

Specs

Form Factor: Digital Signage
Bezel Color: Black
Active Display Area (W x H): 36.6″ x 20.1″ (930.2mm x 523.3mm)
Display Technology: Full HD 1920 x 1080@ 60Hz (native) Active matrix TFT LCD with LED backlight (Other resolutions supported)
Diagonal Size: 42.0″ (106.7 cm)
Aspect Ratio: 16:9
Number of Colors: 16.7 million
Brightness (Typical): LCD Panel 500 nits; with IR 450 nits; with Projected Capacitive 430 nits
Response Time (Tr+ Tf) (typical): 8 msec
Viewing Angle (typical): Horizontal: ±89°/178° total; Vertical: ±89°/178° total
Contrast Ratio (typical): 4000:1
On-Screen Display (OSD): Video Settings: Video Port Discovery, Video Source Select, Black Level, Brightness, Contrast, Sharpness & Auto Adjustment; Color Settings: Color Temperature, User Preset (for color), Dynamic Color Modes are available in this menu; Audio Settings: Audio Source selection is available here. The monitor can be muted and volume can be adjusted; OSD Settings: The OSD Timer and language can be changed in this menu; Power Settings: The Power Behavior can be changed in this menu; RTC Settings: Time setting & the monitor ON/OFF schedule can be changed within this menu. Daylight Saving time will change the current time by one hour to accommodate daylight savings time;
Available 1/0 Ports: nput: AC power input, USB type B (for Touch), VGA, 2x HDMI, GPIO, DisplayPort, Audio Line-in Output: Audio Headphones out, RJ45 (for optional OSD remote)
Video Inputs: Analog VGA on Female DE-15 connector; 2x HDCP-capable HDMI 1.3 on Type A connector; DisplayPort 1.1 a connector; Input Video Horizontal Sync frequency range: 31.5-73 KHz; Input Video Vertical Sync (frame rate) frequency range: 47-63Hz
Power: Input power connector: IEC 60320 C6; Input power signal specifications: 100-240VAC 50/60Hz
Monitor Only (typical at 120V at 60Hz): ON: 81 W; SLEEP: 8.6W: OFF: 2W / (typical at 230V at 50Hz): ON: 80W; SLEEP: 7W; OFF: 2.1W Monitor w/ ECM (typical at 120V at 60Hz): ON: 88W; SLEEP: 11.6W; OFF: 11W / (typical at 230V at 50Hz): ON: 88W; SLEEP: 10W;
OFF: 11W
Audio: Internal Speakers: 4 x SW stereo speakers; Input audio connector: 3.5mm TRS jack; Input audio signal range: 1Vrms max stereo signal (standard PC line out); Headphone output connector: 3.5mm TRS jack
Weight: IR: Unpackaged – w/ ECMG3: 54.9 lbs (24.9kg); w/o ECMG3: 48.3 lbs (21.9kg); Packaged: w/o ECMG3: 61.7 lbs (28.0kg)
PCAP: Unpackaged – w/ ECMG3: 52.4 lbs (23.8kg); w/o ECMG3: 45.8 lbs (20.8kg) Packaged: w/o ECMG3: 59.6 lbs (27.0kg)
Shipping Dimensions: IR: 43. 7″ x 8.46″ x 28.35″ (1110mm x 215mm x 720mm); PCAP: 45.28″ x 8.46″ x 28.35″ (1150mm x 215mm x 720mm)
Maximum Operating Time: 24 hours/day
Temperature: Operating: 32°F to 104°F (0°C to 40°C); Storage: -4°F to 140°F (-20°C to 60°C)
Humidity (non-condensing) Regulatory: Operating: 20%-80%; Storage: 10%-95%
Approvals and Declaration: UL, FCC; cUL, IC; CB; CE/ RFID Supported Protocols: 150 · 14443-A; 150 · 14443-B; 150 – 15693
MTBF: 50,000 hours demonstrated

Downloads
