MPWMP-XU Mustang Professional Menu Board Mount

MSRP: $160.00

Description

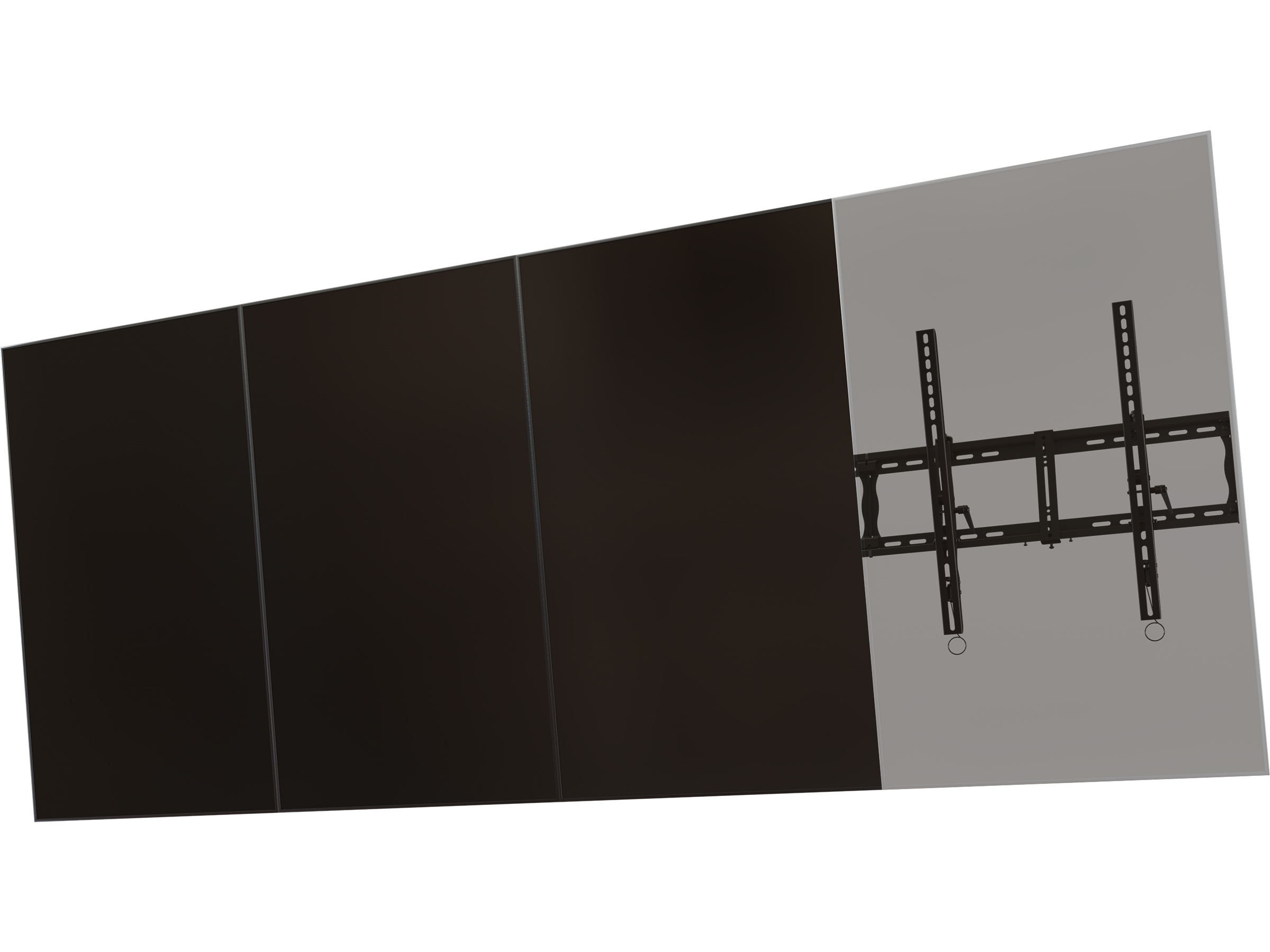

The Mustang Pro MPWMP-XU Wall Mounted Menu Board System for 60″ – 70″ LCD and Plasma TVs with a 200 lb load rating. A fully modular solution for mounting menu board displays to the wall in landscape or portrait orientation, for commercial displays up to 65”+ in size. Features unique post-installation leveling and cable management capabilities, and includes all of the necessary components and hardware needed to complete the installation. Systems designers need only to know the size and number of displays to be used as well as the orientation; we’ll kit the complete mount system and ship it to the location requested. We’ll even provide a custom dimentioned drawing with each configuration ordered. Prices are based on the number of displays to be mounted, further simplifying the specification and quotation process.

Call us Now at 866-395-0370 for Ordering Information.

Mustang Professional MPWMP-XU Menu Board Display Mount. Max VESA: 400 x 800, Max Weight: 200lbs

Specs

Display Sizes: 60″ – 70″ TVs
Load Rating: 200 lbs
Max VESA: 400x800mm
Orientation: Landscape or portrait
Tilt: +15°/-5°
Depth From Wall: 2.2″
Height Adjustment: ±0.4”
Lateral Adjustment: Varies with screen
Mounting Surface: wood stud, concrete, cinder block or metal stud (accessory required MPHT)
Stud Spacing: Dual stud 16”, 20”, 24” on center, triple stud on 16” center.
Construction: High-grade cold rolled steel
Finish: Scratch resistant epoxy powder coat
