MPS-X137UL Mustang Professional Cart/Stand

Description

The Mustang Pro MPS-X137UL Mobile Carts and Floor Stands for 70″ – 98″ LCD and Plasma TVs with a 300 lb load rating. MPS-X137U heavy duty stand for extra large displays is compatible with Microsoft Surface Hub. Add component shelves as needed to customise your solution. Side shelves are designed for heavy use of presentation laptops and can be vertically adjusted without the use of tools as well as swiveled continuesly up to 45º in front or behind the display. Side shelves also easily retract for transport and storage. The solid front/back shelf can be mounted either in front or behind the display at any height position.

Call us Now at 866-395-0370 for pricing and availability.
Mounting Solution Selection

Our universal mounting solutions range covers 10” to 100” displays. Our solutions have adjustable universal hole patterns (VESA) to fit a wide selection of displays.

VESA Patters from 75 x 75 to 1000 x 900 and weight allowances from 40lb to 500lb are available – Depending on the mount.

The display’s Inch ” size on our sales sheets is only a guide – Compatible display sizes can be larger or smaller depending on the VESA and weight of the display- Always check the VESA pattern and weight of your display to ensure compatibility with our mounting solutions.

Select the correct weight and the VESA mounting pattern of your display from our filters to ensure you choose correct mount for your display.

Articulating solutions.

Our Articulating mounts will articulate (pivot) between 40 and 180 degrees; however, this could be restricted by the width of the display. For unrestricted articulation check that the “Max Extension” of the mount is at least 50% of the width of the display.

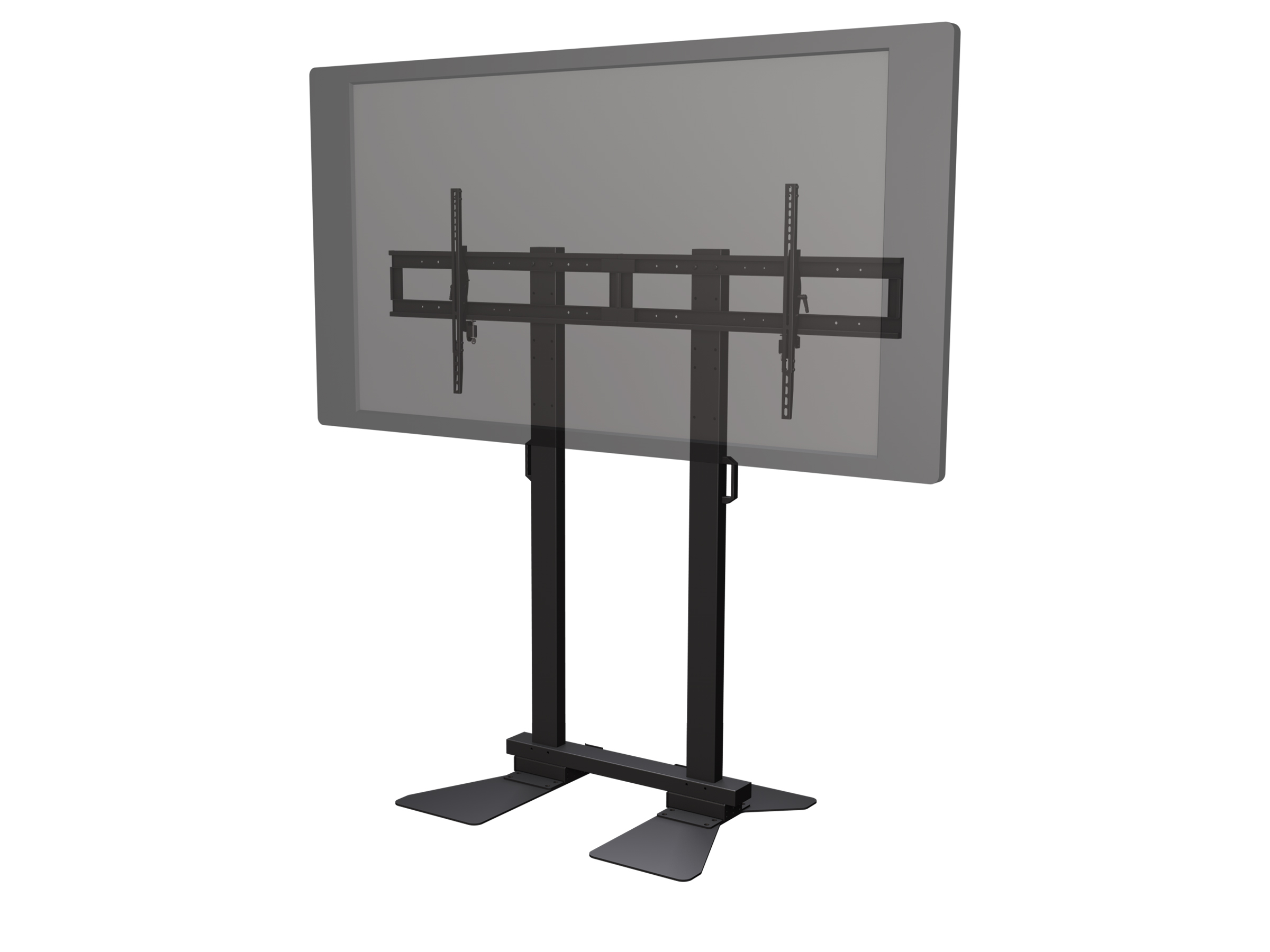

Mustang Professional MPS-X137UL Floor Display Mount. Max VESA: 1351 x 757, Max Weight: 300lbs

SKU: MPS-X137UL Categories: , ,

Specs

Display Sizes: 70″ – 98″ TVs
Load Rating: 300 lbs
Max VESA Pattern: 1351x757mm
Height Adjustment: 4 height positions to center display at 52”, 58”, 60”, 64”
Tilt: +15°/-5° continuous tilt with incremental locking positions
Security Feature: One-touch lock and key system
Max component depth: 3” (with cover installed)
Shelves: Vertically adjustable; side shelves can be adjusted continuously from 45° in front to 45° behind the display
Optional Accessories: MPMP-C9 back panel and cover system, MPMS-9S laptop shelf, MPMS-9B front/back shelf, MPMS-9T top shelf
Construction: Aluminum/high-grade cold rolled steel
Finish: Scratch resistant epoxy powder coat
